Model
|

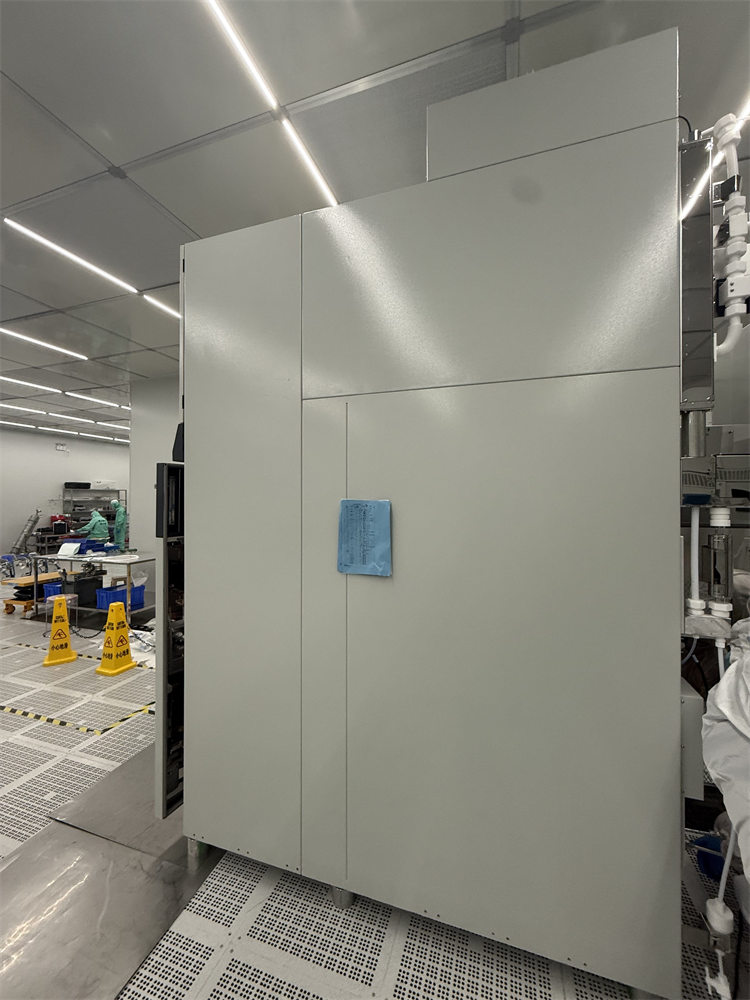

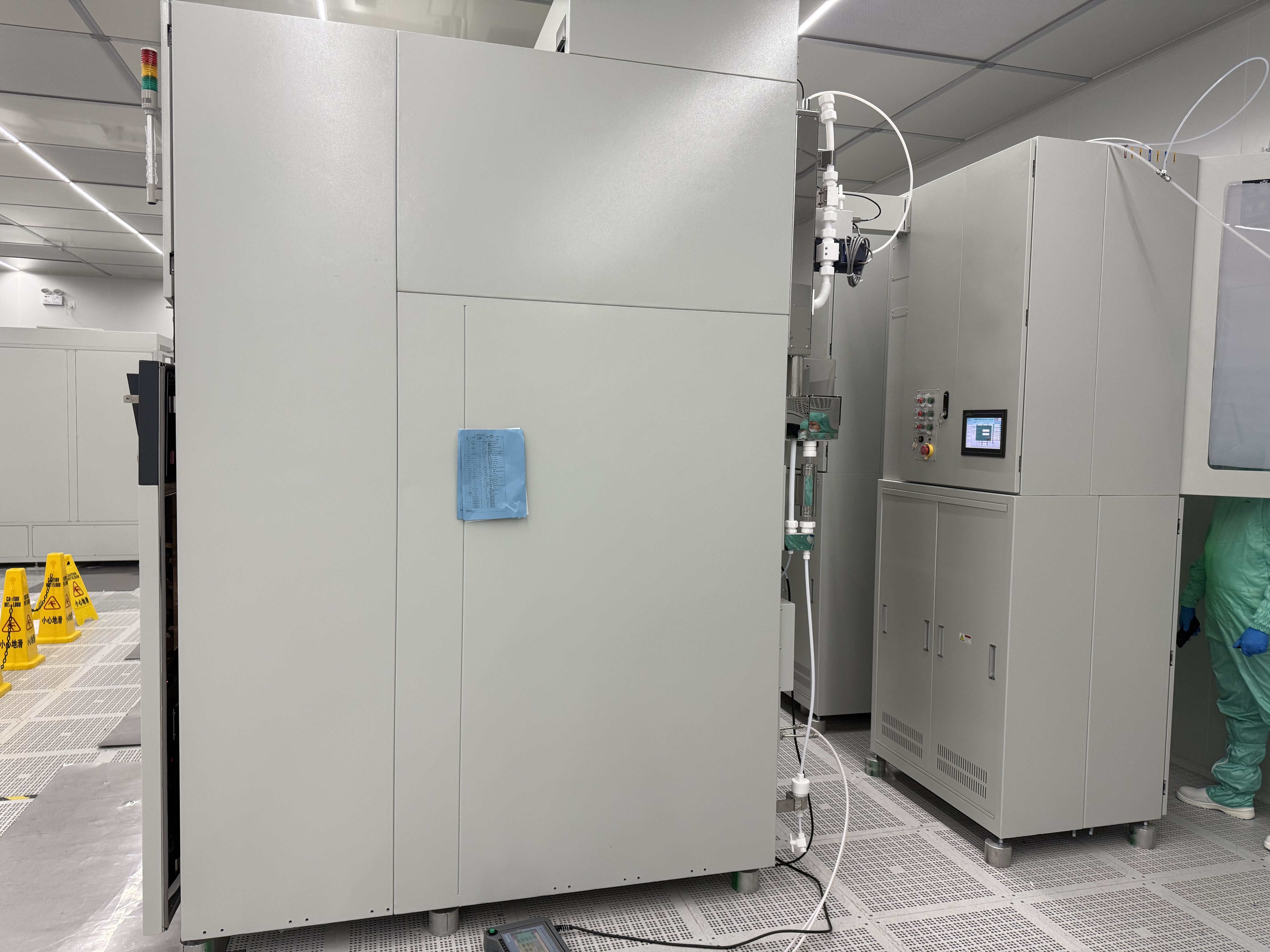

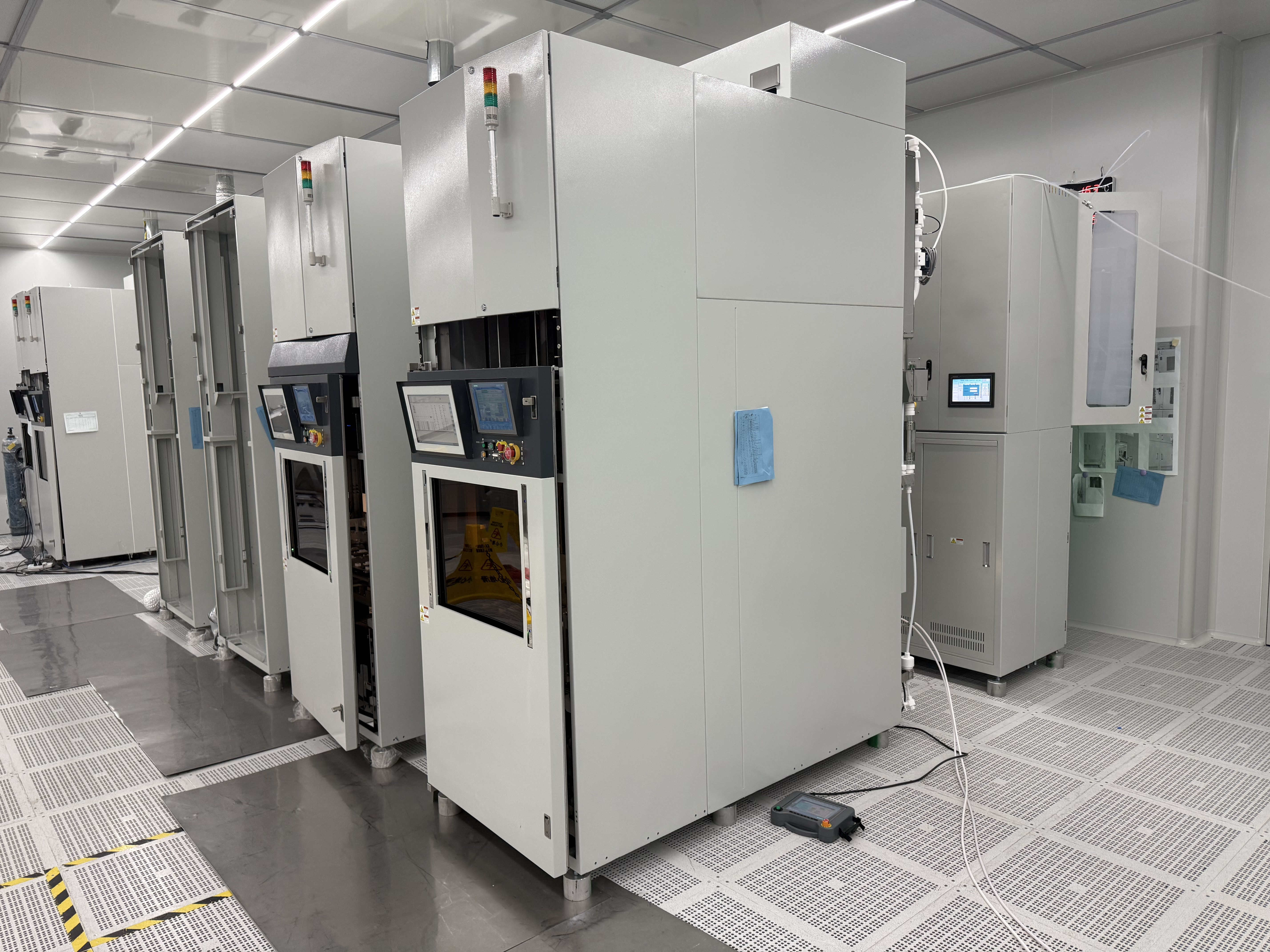

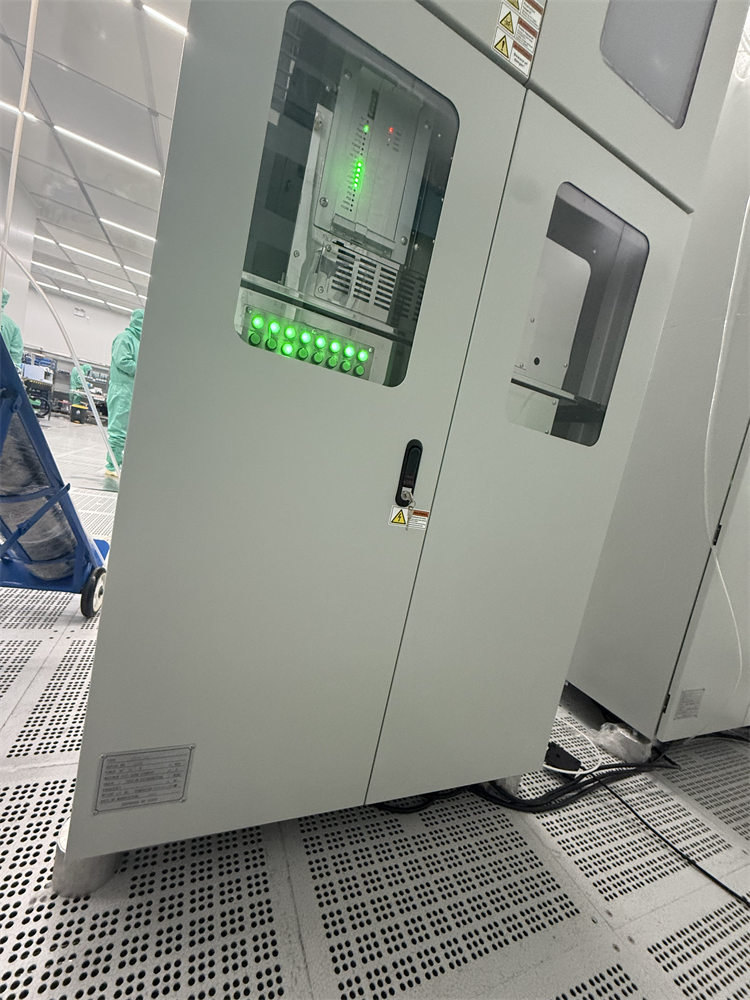

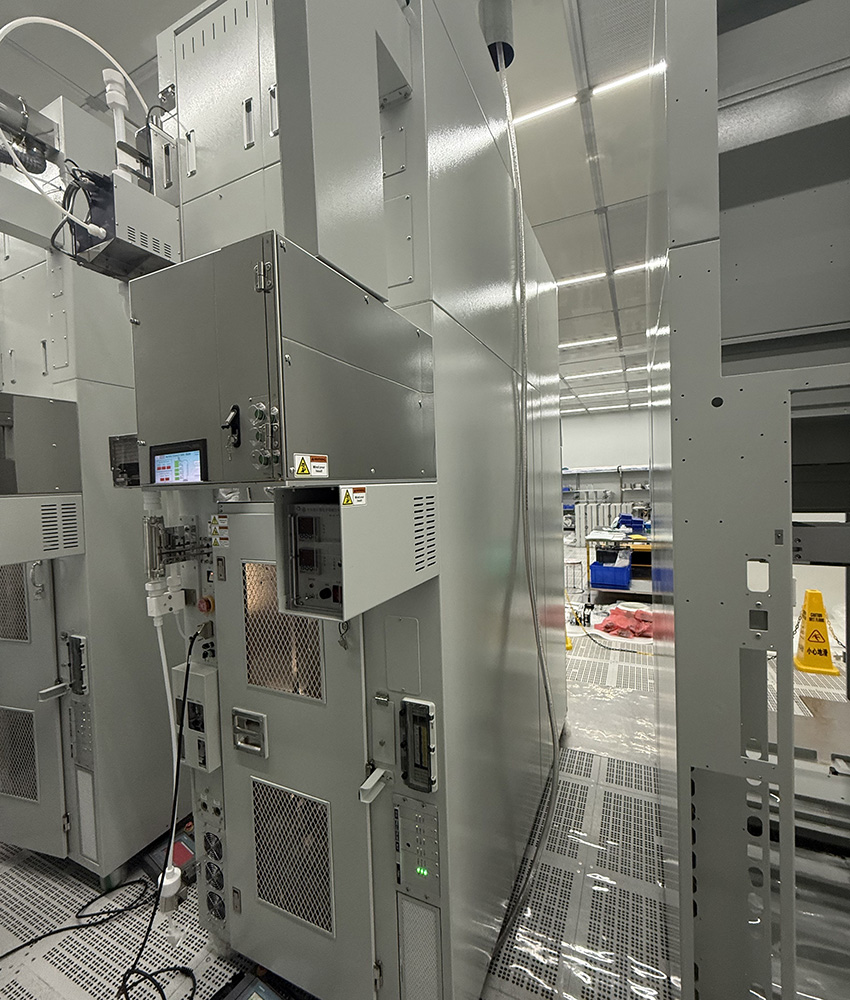

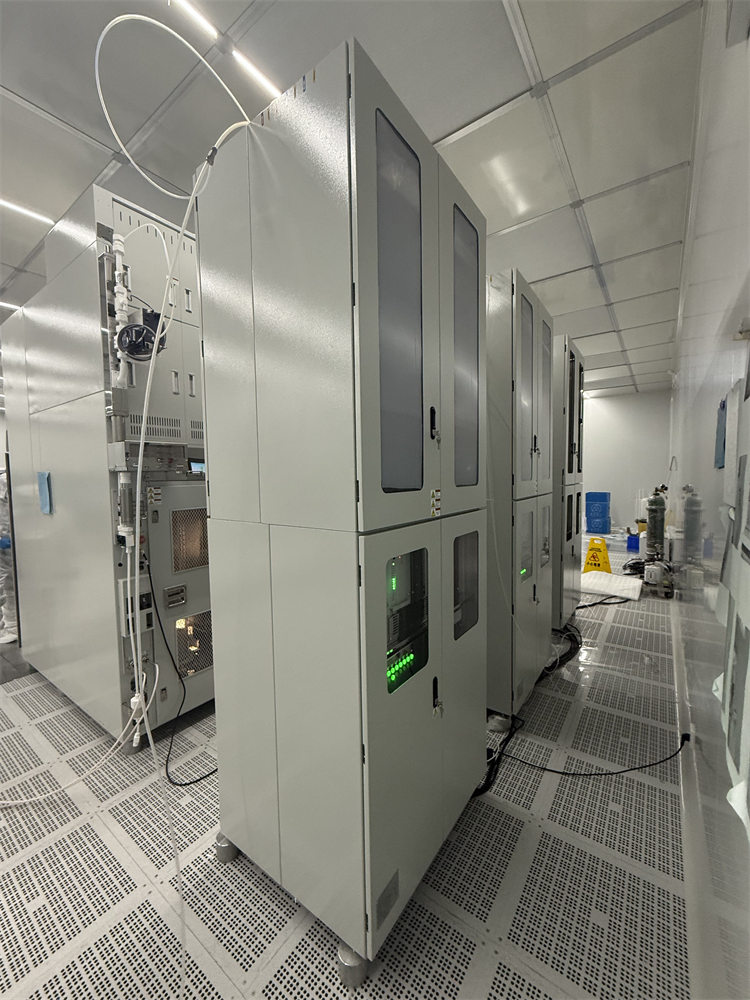

Vertical 1150℃ Thermodiffusion Furnace
|

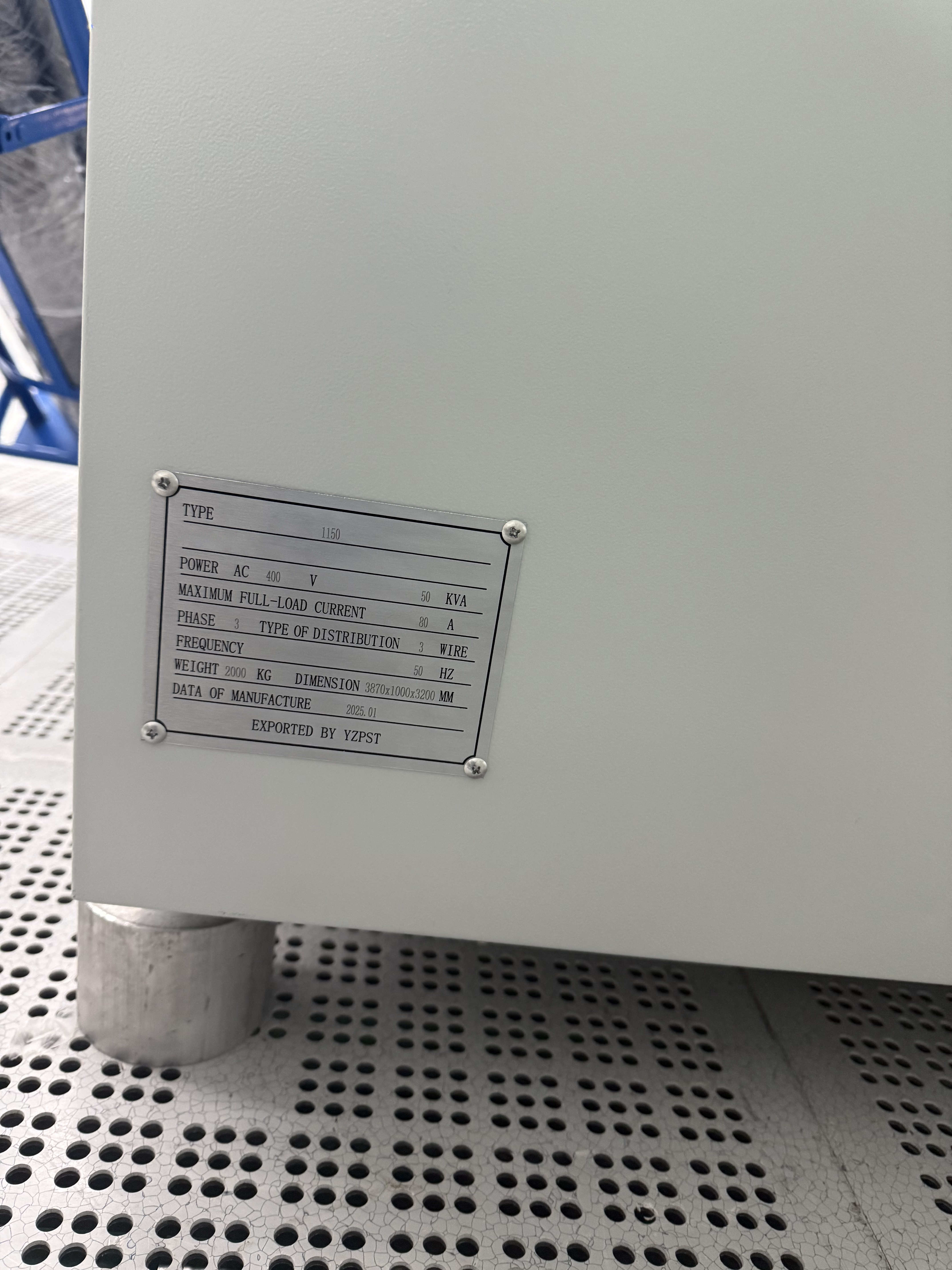

Rating
|
Φ3 AC 400V 50KVA
|
|
Weight(KG)
|
2000KG
|
L*W*H(mm)
|
3870x1000x3200 mm
|
|
Service Life(Years)
|
20 Years
|
|
|
|
Purpose
|
The machine is designed for high-temperature thermal treatment
of silicon wafers with a diameter of 200 mm in order to obtain profiles of
alloying impurities and oxidation of the silicon surface.
|
|
Main Characteristic
|
1.High-temperature operation: Diffusion furnaces typically operate at high temperatures to facilitate
the diffusion of impurities in semiconductor materials. For example, their operating temperature range is usually between 600-1200℃.
2.Precise temperature control: To ensure the accuracy and consistency of the process, diffusion furnaces require precise temperature control.
The precision of the constant temperature zone can reach ±0.5℃,
and they have functions for automatic ramp-up and ramp-down as well as constant temperature.
3.Atmosphere control: The atmosphere control inside the diffusion furnace is crucial to ensure the effectiveness
of impurity doping and crystal quality.
Operations are typically conducted in a vacuum or inert gas environment to prevent
contamination from impurities.
4.Batch processing capability: Diffusion furnaces are designed to process a large
number of substrates, making them suitable for mass production. For example,
horizontal diffusion furnaces can accommodate multiple process tubes,
thereby achieving efficient batch processing.
|
